Chemi‐Lumi One Series for HRP
Chemi-Lumi One is a series of high sensitive luminol-based chemiluminescence assay kits for Western Blotting. We offer three types of chemiluminescent substrates for Western blot detection with horseradish peroxidase enzyme (HRP).
Product Information
| Product Name | Chemi-Lumi One L | Chemi-Lumi One Super | Chemi-Lumi One Ultra |
|---|---|---|---|
| Product No. | 07880 | 02230 | 11644 |
| Usage | General Use | High Sensitive | Ultra high Sensitive |
| Lower Detection Limit | Low-picogram | Mid-femtogram | Low-femtogram |
| Required Working Solution | Approx. 0.125 ml / cm2 | Approx. 0.1 ml / cm2 | Approx. 0.1 ml / cm2 |
| Suggested Antibody Dilution | Primary: 1:1,000-1:5,000 Secondary: 1:20,000-1:100,000 |
Primary: 1:1,000-1:20,000 Secondary: 1:20,000-1:200,000 |
Primary: 1:5,000-1:100,000 Secondary: 1:100,000-1:500,000 |
| Reaction Period | 1 min. | 1 min. | 5 min. |
| Comparable to | ECL SuperSignal Pico |
ECL Prime SuperSignal Dura |
ECL Select SuperSignal Femto |
| Sensitivity |  <Condition> Antigen: Anti-Mouse IgG (Goat), HRP Conjugated (Santa Cruz, sc-2005) Detection: L (1 min. ), Super (1 min. ) and Ultra (5 min. ) Detector: LAS-3000 Super mode (Analyze 3 min. later after reaction with each substrate) Expose time: 30 min. |
||
Chemi-Lumi One L
- Suitable for optimization approach of target proteins
- Reasonable price in Chemi-Lumi One Series
- Detect wide range of protein concentration
Comparison of sensitivity with competitors
Chemi-Lumi One L offers the similar sensitivity as T and W company's products and higher sensitivity than G company's products
<Condition>
| Gel | 10% PAGE gel |
|---|---|
| Wash | 0.1% t-TBS(1x), pH7.4 |
| Blocking | Blocking One |
| 1st Ab | Anti-β-Actin Mouse Monoclonal Antibody, (Santa Cruze sc-47778), 1:1,000 |
| 2nd Ab | Anti-Mouse IgG (Goat), HRP Conjugated, (Santa Cruze sc-2005), 1:20,000 |
| Detection period | Chemi-Lumi One L, 1 min., Competitor G, T, W 1min. |
| Detector | LAS-3000 High mode |
| Expose time | 5 min. |

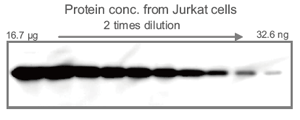

Comparison of detection limit
Chemi-Lumi One L is suitable for detection of unknown protein concentration or optimization conditions.
<Condition>
| Gel | 10% PAGE gel |
|---|---|
| Wash | 0.1% t-TBS(x1), pH7.4 |
| Blocking | Blocking One |
| 1st Ab | Anti-β-Actin Mouse Monoclonal Antibody, (Santa Cruze sc-47778), 1:1,000 |
| 2nd Ab | Anti-Mouse IgG (Goat), HRP Conjugated, (Santa Cruze sc-2005), 1:20,000 |
| Detection period | Chemi-Lumi One L, 1 min. |
| Detector | LAS-3000 High mode |
| Expose time | 30 min. |
References
- J Foo et al.: BMC complementary and alternative medicine 14.1 (2014)
- M Sato et al.: Scientific reports 4 (2014)
- M Tokumoto et al.: The Journal of toxicological sciences 38.6 (2013)
- H Hirakawa et al.: Biotechnology and bioengineering 110.7 (2013)
- H Yoshida et al.: Biochemical and biophysical research communications 418.2 (2012)
- H Fukuoka et al.: Growth Hormone & IGF Research 20.3 (2010)
- Q Yu et al.: Biochemical and biophysical research communications365.1 (2008)
Protocols
Chemi-Lumi One L
(PDF 100 KB)
Downloads
Chemi-Lumi One Series (PDF 1.84 MB)
Chemi-Lumi One Super
- Detects proteins at Mid-femtogram level with low background
- Rapid substrate processing of blot
- Applicable extention of exposure time and detectable lower expression level proteins
Comparison of sensitivity with competitors
Chemi-Lumi One Super is the most sensitive of competitors under the above consition, and its expore time is only 1 min., while others are required 5 min.
<Condition>
| Gel | 10% PAGE gel |
|---|---|
| Wash | 0.1% t-TBS, pH7.4 |
| Blocking | Blocking One |
| 1st Ab | Anti-β-Actin Mouse Monoclonal Antibody, (Santa Cruze sc-47778), 1:2,000 |
| 2nd Ab | Anti-Mouse IgG (Goat), HRP Conjugated, (Santa Cruze sc-2005), 1:30,000 |
| Detection period | Chemi-Lumi One Super, 1 min. Competitor G, T, W, B 5 min. |
| Detector | LAS-3000 High mode |
| Expose time | 5 min. |
Comparison of background
Chemi-Lumi One Super performs under lower background, so users enable expose time to be longer for achieving more sensitive analysis.
<Condition>
| Gel | 10% PAGE gel |
|---|---|
| Wash | 0.05% t-TBS, pH7.4 |
| Blocking | Blocking One |
| 1st Ab | Anti-β-Actin Mouse Monoclonal Antibody, (Santa Cruze sc-47778), 1:1,000 |
| 2nd Ab | Anti-Mouse IgG (Goat), HRP Conjugated, (Santa Cruze sc-2005), 1:10,000 |
| Detection period | Chemi-Lumi One Super, 1 min. Competitor G, 5 min. |
| Detector | LAS-3000 High mode |
| Expose time | 1 min. and 10 min. |
>> Comparison Data of Western Blotting Substrate with Chemi-Lumi
One Super and competitors
References
- C Sakuma et al.: Molecular immunology63.2 (2015): 328-336
Protocols
Chemi-Lumi One L (PDF 100 KB)
Downloads
Chemi-Lumi One Series (PDF 1.84 MB)
Chemi-Lumi One Ultra
- The most sensitive in Chemi-Lumi One Series
- Longer signal duration
- Applicable wider experimental condition due to low background
Comparison of sensitivity with competitors 1
Chemi-Lumi One Ultra is an extremely sensitive chemiluminescent substrate. Western blot of identical transferrin samples. The membranes were incubated with substrate that was prepared according to the manufacturers' instructions. The membranes were exposed to film for 2 minutes.
Primary antibody : Rabbit anti-transferrin, 1: 30,000
Secondary antibody: Goat anti-rabbit IgG-HRP, 1: 200,000
Comparison of sensitivity with competitors 2
Chemi-Lumi One Ultra shows equal to or higher sensitivity compared to competitors'.
<Condition>
| Gel | 10% PAGE gel |
|---|---|
| Wash | 0.1% t-TBS(x1), pH7.4 |
| Blocking | Blocking One |
| 1st Ab | Anti-β-Actin Mouse Monoclonal Antibody, (Santa Cruze sc-47778), 1:300 |
| 2nd Ab | Anti-Mouse IgG (Goat), HRP Conjugated, (Santa Cruze sc-2005), 1:1,000 |
| Detection period | 5 min. |
| Detector | LAS-3000 High mode |
| Expose time | 3 min. |
Comparison of Abs concentration
Due to low background, Chemi-Lumi One Ultra is applicable to wide range of primary antibodies, and makes it easy to optimize condition.
<Condition>
| Gel | 10% PAGE gel |
|---|---|
| Wash | 0.1% t-TBS(1x), pH7.4 |
| Blocking: | Blocking One |
| 1st Ab | Anti- PCNA Mouse Monoclonal Antibody, (Santa Cruze sc-56c) |
| 2nd Ab | Anti-Mouse IgG (Goat) HRP, (Santa Cruze sc-2005), 1:100,000 |
| Detection period | 5 min. |
| Detector: | LAS-3000 High mode |
| Expose time | 1:1,000, 3 min. 1:5,000, 5 min. 1:10,000, 8 min. |
Protocols
Chemi-Lumi One L (PDF 100 KB)
Downloads
Chemi-Lumi One Series (PDF 1.84 MB)
Ordering Information
| Product Name | Storage | Product No. | PKG Size | Price |
|---|---|---|---|---|
| Chemi-Lumi One L Luminol 250 ml, Peroxide 250 ml Sufficient substrate for 4,000 cm2 of blotting membrane |
R | 07880-70 | 1 kit |  |
| Chemi-Lumi One Super Luminol 50 ml, Peroxide 50 ml Sufficient substrate for 1,000 cm2 of blotting membrane |
R | 02230-30 | 1 kit | |
| Chemi‐Lumi One Ultra Luminol 50 ml, Peroxide 50 ml Sufficient substrate for 1,000 cm2 of blotting membrane |
R | 11644-40 | 1 kit |
[Patents]
Chemi-Lumi One Ultra is manufactured and patented by Cyanagen s.r.l and protected by US7803573; EP1962095; US7855287; EP1950207 US2012009603(A1); CA2742025; EP2405016 and foreign equivalents and other pending patents
Related Productds
| Product Name | Storage | Product No. | PKG Size | Price |
|---|---|---|---|---|
| Signal Enhancer HIAKRI for Western Blotting and ELISA Solution A: for primary antibodies Solution B: for secondary antibodies |
R | 02267-41 | 1set (50 ml each) |
|
| 02270-81 | 1set (250 ml each) |
|||
| Signal Enhancer HIKARI for Western Blotting and ELISA Solution A |
R | 02272-74 | 250 ml | |
| Signal Enhancer HIKARI for Western Blotting and ELISA Solution B |
R | 02297-64 | 250 ml | |
| Blocking One | R | 03953-95 | 250 ml |
(Storage) RT: Room temperature, A: Cool and dark, R: Refrigerator, F: Freeze
